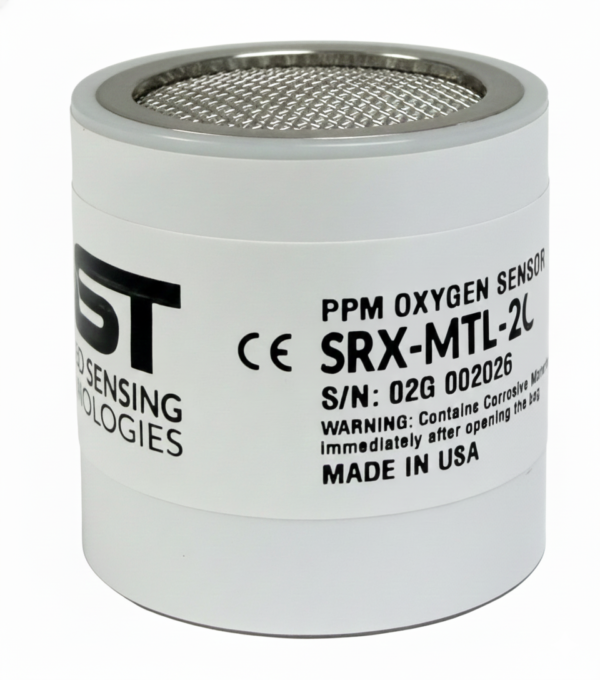

SRX-MTL-2C PPM O2 Sensor – Replaces Teledyne Class L-2C

The SRX-MTL-2C PPM O2 Sensor is a drop-in replacement to Teledyne Class L-2C, part number C06689-L2C. The sensor delivers accurate and reliable trace oxygen measurement for demanding industrial gas analysis applications, especially where the ambient temperature can be above 30°C. The mechanical and electrical characteristics of SRX-MTL-2C PPM O2 sensor matches the mechanical and electrical characteristics of Teledyne Class L-2C. The users can easily replace the original sensor quickly and return their analyzer to service with minimal downtime.

The SRX-MTL-2C PPM O₂ Sensor is recommended to measure oxygen from high PPM concentrations down to low PPM O₂. Key performance features include fast recovery from air to 10 PPM in typically less than 60 minutes and long operating life with minimal maintenance.

Ideal for Dry and High-Temperature Gas Streams

The SRX-MTL-2C incorporates a larger electrolyte reservoir and performs particularly well in very dry inert gas streams where the ambient temperatures may be above 30°C. Therefore, this sensor in very dry inert gases, hydrogen, and gaseous hydrocarbon streams. For gas streams containing high concentrations of CO₂ and trace levels of acidic gases, such as H₂S, the model SRZ-MTL-2C is recommended. The sensor is not suitable for use in highly reactive or corrosive gases, including SF₆, HCl, and NH₃.

Applied Sensing Technologies designs, develops, and manufactures the SRX-MTL-2C PPM O₂ Sensor in the USA.
